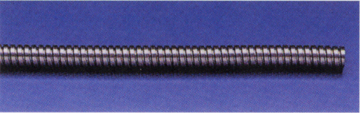

By interlocking U-shaped stainless steel plates the flexible tube becomes stronger.
Protection tubes can withstand a high level of stretching and contracting .
It can be bent to any angle and maintain it's shape. In addition, it is lightweight
and won't rust.
Material: SUS304(stainless steel)
| code |
outer diameter (mm) |
bore diameter (mm) |
minimum bending radius
(R) |
standard size(m) |
| SDF1-3 |
5.0 |
3.0 |
30 |
100 |
| SDF1-4 |
6.0 |
4.0 |
30 |
100 |
| SDF1-5 |
7.0 |
5.0 |
35 |
100 |
| SDF1-6 |
8.0 |
6.0 |
35 |
100 |
| SDF1-8 |
10.0 |
8.0 |
40 |
100 |
| SDF1-10 |
12.0 |
10.0 |
45 |
100 |
| SDF1-12 |
14.0 |
12.0 |
50 |
100 |
| SDF1-13 |
15.0 |
13.0 |
55 |
100 |
| surface treatment |
color: white/black/blue/pink/green/other
heat protective coating |
| uses |
medical products/point light/interior
light
cable protection/car accessories/others |
 |
|
| |

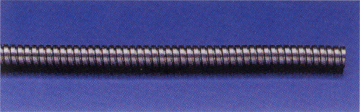

The current version of Semi-inter is pre-stretched from manufacture to protect
against a high level of unwanted stretching .
材質：SUS304（ステン線）
| code |
outer diameter (mm) |
bore diameter (mm) |
minimum bending radius
(R) |
standard size(m) |
| SS1-3 |
5.0 |
3.0 |
30 |
100 |
| SS1-4 |
6.0 |
4.0 |
30 |
100 |
| SS1-5 |
7.0 |
5.0 |
35 |
100 |
| SS1-6 |
8.0 |
6.0 |
35 |
100 |
| SS1-8 |
10.0 |
8.0 |
40 |
100 |
| SS1-10 |
12.0 |
10.0 |
45 |
100 |
| SS1-12 |
14.0 |
12.0 |
50 |
100 |
| SS1-13 |
15.0 |
13.0 |
55 |
100 |
| surface treatment |
color: white/black/blue/pink/green/other
heat protective coating |
| uses |
medical products/point light/interior
light
cable protection/car accessories/others |
|
|
| |
|
