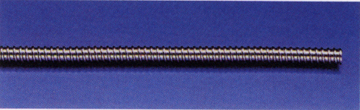

A non-kinking stainless steel Flexible tube casing type. This lightweight tube
can be bent to any angle easily with hardly any slack and no worries of rusting .
This is the ideal flexible tube for cable protection of medical products and computer
operated robots etc .
It can be bent to any angle but does not retain its shape .
Material ：SUS304（stainless steel ）
| code |
outer diameter (mm) |
bore diameter(mm) |
minimum bending radius
(R) |
standard size(m) |
| DFK-2.5 |
3.5 |
2.5 |
20 |
100 |
| DFK-3 |
4.0 |
3.0 |
20 |
100 |
| DFK-4 |
6.0 |
4.0 |
25 |
100 |
| DFK-4.5 |
6.5 |
4.5 |
25 |
100 |
| DFK-5 |
7.0 |
5.0 |
25 |
100 |
| DFK-6 |
8.0 |
6.0 |
30 |
100 |
| DFK-7 |
9.0 |
7.0 |
30 |
100 |
| DFK-8 |
10.0 |
8.0 |
35 |
100 |
| DFK-10 |
12.0 |
10.0 |
35 |
100 |
| DFK-12 |
15.5 |
12.7 |
40 |
50 |
| DFK-14 |
17.0 |
14.4 |
40 |
50 |
| DFK-15 |
19.0 |
15.8 |
45 |
50 |
| DFK-19 |
22.0 |
19.1 |
45 |
50 |
| DFK-22 |
26.5 |
22.3 |
50 |
50 |
| DFK-25 |
29.0 |
25.4 |
50 |
50 |
| surface treatment |
color: white/black/blue/pink/green/other
surface(coating): heat protective coating |
| uses |
protection of all kinds of electrical
cables |
 |
|
| |
Material ：SUS304（stainless steel ）
| code |
outer diameter (mm) |
bore diameter (mm) |
minimum bending radius
(R) |
standard size(m) |
| DFK-2.5 |
3.5 |
2.5 |
20 |
100 |
| DFK-3 |
4.0 |
3.0 |
20 |
100 |
| DFK-4 |
6.0 |
4.0 |
25 |
100 |
| DFK-4.5 |
6.5 |
4.5 |
25 |
100 |
| DFK-5 |
7.0 |
5.0 |
25 |
100 |
| DFK-6 |
8.0 |
6.0 |
30 |
100 |
| DFK-7 |
9.0 |
7.0 |
30 |
100 |
| DFK-8 |
10.0 |
8.0 |
35 |
100 |
| DFK-10 |
12.0 |
10.0 |
35 |
100 |
| DFK-12 |
15.5 |
12.7 |
40 |
50 |
| DFK-14 |
17.0 |
14.4 |
40 |
50 |
| DFK-15 |
19.0 |
15.8 |
45 |
50 |
| DFK-19 |
22.0 |
19.1 |
45 |
50 |
| DFK-22 |
26.5 |
22.3 |
50 |
50 |
| DFK-25 |
29.0 |
25.4 |
50 |
50 |
| surface treatment |
color: white/black/blue/pink/green/other
surface(coating): heat protective coating |
| uses |
protection of all kinds of fiber
optics cables,
protection of all kinds of electrical cables |
|
|
| |
|
